Conventional tuyere series

WGF high efficiency air supply outlet

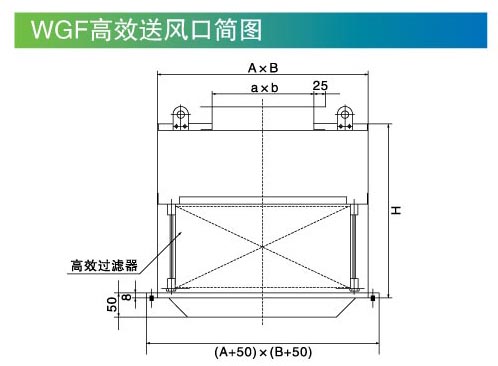

WGF high efficiency air supply outlet

Application and characteristics: it is generally used as the top air supply outlet in vertical laminar flow system of clean engineering. The air outlet panel adopts the form of porous air outlet, and the aperture and ventilation rate can be determined according to the maximum wind speed required by the actual space. The tuyere is beautiful and durable as a whole, and the panel is easy to disassemble, which is convenient for users to replace the high-efficiency filter element. The efficiency of high efficiency filter element is 99.99% by 0.3mmdopo laser counting method, which is in accordance with 209c standard of the United States federal government and relevant NASA facilities specifications.


Explain:

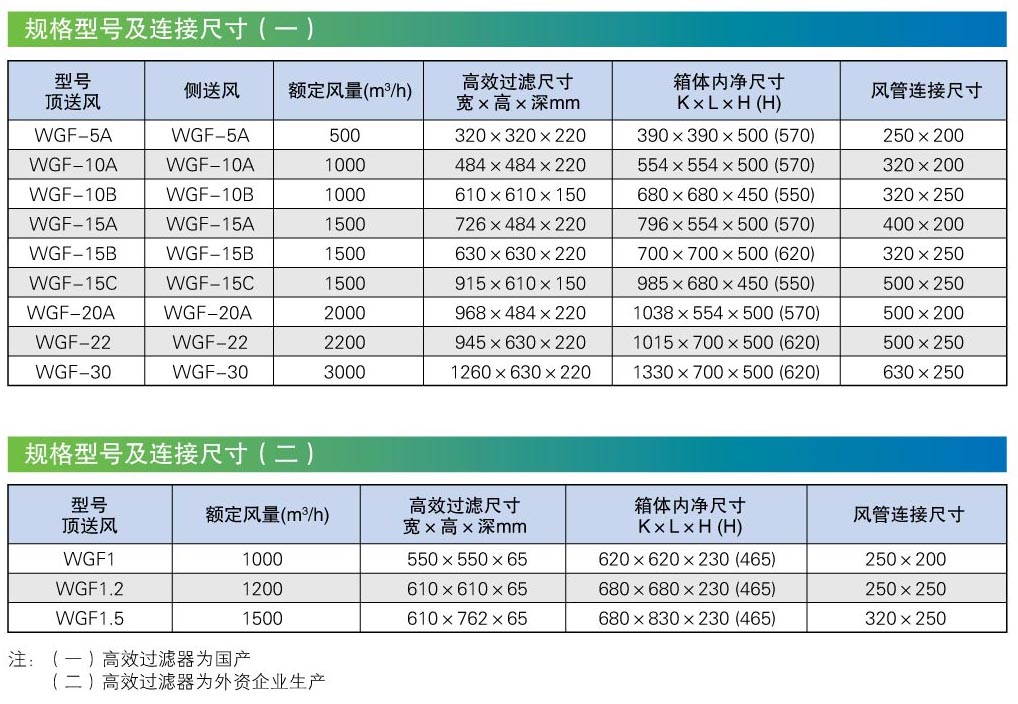

The size can be customized according to the customer's requirements.








Application and characteristics: it is generally used as the top air supply outlet in vertical laminar flow system of clean engineering. The air outlet panel adopts the form of porous air outlet, and the aperture and ventilation rate can be determined according to the maximum wind speed required by the actual space. The tuyere is beautiful and durable as a whole, and the panel is easy to disassemble, which is convenient for users to replace the high-efficiency filter element. The efficiency of high efficiency filter element is 99.99% by 0.3mmdopo laser counting method, which is in accordance with 209c standard of the United States federal government and relevant NASA facilities specifications.


Explain:


The size can be customized according to the customer's requirements.
