Watcd-h type automatic wind direction variable circular nozzle

Watcd-h type automatic wind direction variable circular nozzle

Purpose and characteristics:


It adopts internal and external two-layer structure, equipped with automatic temperature sensing mechanism, the temperature of cooling air in summer reaches 17 ℃, and the temperature of hot air in winter reaches over 28 ℃, and the wind direction is inclined to blow out, which overcomes the characteristics of hot air rising, and the range can be extended. The tuyere is generally installed in a place with high floor height. Without power supply, the temperature sensing actuator has the advantages of energy saving, environmental protection, maintenance free, stable performance, intelligent and so on.


Explain:

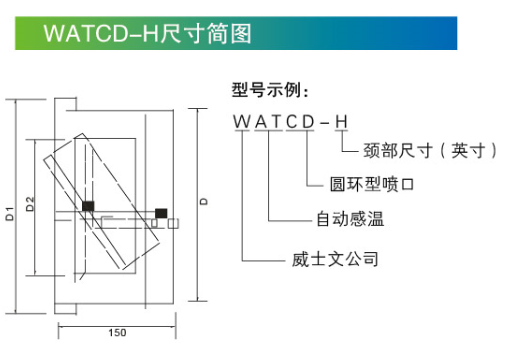

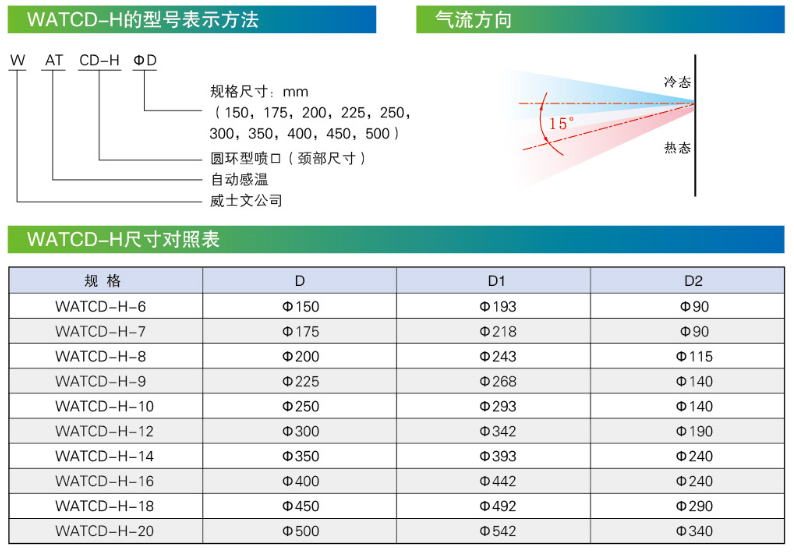

The specific specifications are Φ L50, φ 175, φ 200, φ 225, φ 250, φ 300, φ 350, φ 400, φ 450 and φ 500. Blades can be increased to 3 rings as required. Optional accessories are butterfly valves. Customized form: manual type, temperature sensing type.

Purpose and characteristics:


It adopts internal and external two-layer structure, equipped with automatic temperature sensing mechanism, the temperature of cooling air in summer reaches 17 ℃, and the temperature of hot air in winter reaches over 28 ℃, and the wind direction is inclined to blow out, which overcomes the characteristics of hot air rising, and the range can be extended. The tuyere is generally installed in a place with high floor height. Without power supply, the temperature sensing actuator has the advantages of energy saving, environmental protection, maintenance free, stable performance, intelligent and so on.


Explain:


The specific specifications are Φ L50, φ 175, φ 200, φ 225, φ 250, φ 300, φ 350, φ 400, φ 450 and φ 500. Blades can be increased to 3 rings as required. Optional accessories are butterfly valves. Customized form: manual type, temperature sensing type.
